How Binder Demand Affects Titanium Dioxide Loading in Paint starts with one practical rule: evaluate the pigment inside the complete production formulation, not from TiO2 assay or a single supplier value. titanium dioxide loading in paint performance depends on the pigment surface, formulation chemistry, dispersion process, film structure, and end-use requirement. A controlled trial should connect those variables to hiding, appearance, processing, durability, and cost.
Table of Contents
- Why the formulation changes the result
- What formulators should compare
- A controlled laboratory workflow
- How to diagnose weak results
- Supplier qualification checklist
- Frequently asked questions
Why binder demand and pigment loading changes pigment performance
Every pigment surface consumes part of the formulation鈥檚 wetting and binder capacity. As TiO2 concentration rises, particle spacing, viscosity, film porosity, and the effective pigment volume concentration change, so opacity does not increase linearly with dosage.
For this reason, titanium dioxide loading in paint should be treated as a formulation-and-process decision. Adding more pigment can deliver little extra hiding while raising cost and viscosity. Near or above critical pigment volume concentration, scrub resistance, gloss, stain resistance, and durability may deteriorate even when the wet paint appears normal. The useful question is not whether one certificate number is higher, but whether the candidate creates a stable, reproducible coating within the plant’s operating limits.
What to compare before approving titanium dioxide loading in paint
Build a dosage ladder and measure contrast ratio per unit of pigment, viscosity, gloss, scrub, porosity, and film strength. Hold extender package, binder solids, dispersant strategy, and applied dry-film thickness constant. This prevents a stronger result from being created by a hidden change in the test rather than by the pigment.
| Decision area | Measure | Why it matters |
|---|---|---|
| Pigment volume concentration and spacing | Opacity efficiency, viscosity, scrub, gloss | Finds the economic loading plateau |
| Dispersion quality | Fineness, residue, energy, temperature | Separates process limits from pigment behavior |
| Dry-film efficiency | Contrast ratio, tint strength, gloss | Shows useful optical performance at controlled film build |
| Robustness | Storage aging and repeat batches | Checks whether the result is stable and reproducible |
Use supplier data to define the starting window, then verify titanium dioxide loading in paint with your own raw materials. Laser-diffraction results should be interpreted under a declared method because ISO 13320 describes method-dependent equivalent-sphere distributions. A grind gauge, covered by ASTM D1210, measures coarse particles or agglomerates in a dispersion; it does not replace an optical-performance test.

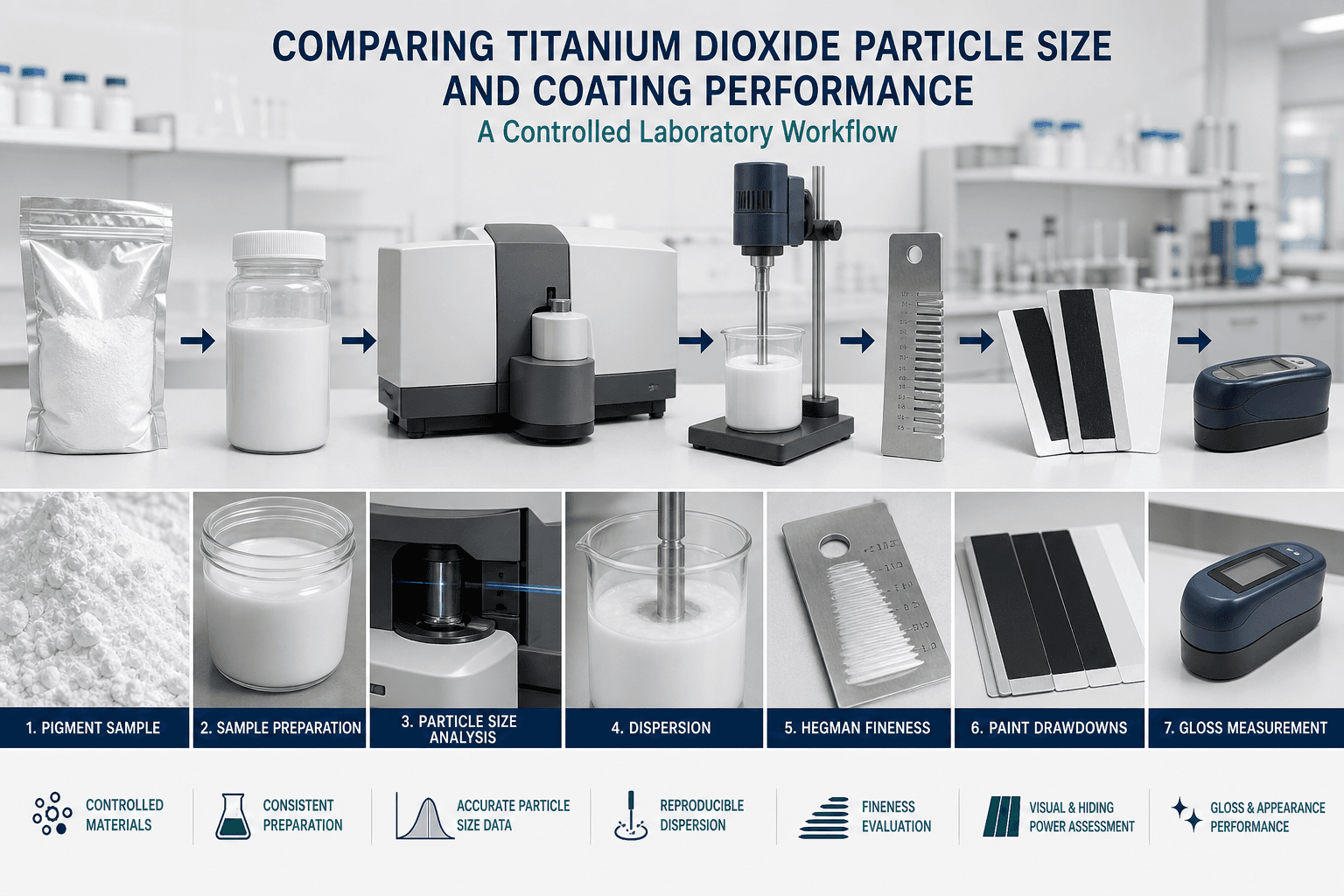

A controlled titanium dioxide loading in paint laboratory workflow
Test at least four closely spaced TiO2 levels around the current formula. Plot contrast ratio and cost per liter, then overlay performance limits for viscosity, gloss, and scrub to identify the usable optimum. Randomize sample order where practical and repeat the control so drift in mixing, application, or measurement becomes visible.
- Define the pass/fail limits before opening the samples.
- Condition raw materials and panels at the same temperature.
- Record charging order, speed, time, batch temperature, and energy.
- Test the mill base before completing the letdown.
- Apply equal wet or dry film thickness and use the same cure schedule.
- Repeat critical measurements and retain labeled samples.
How to diagnose disappointing titanium dioxide loading in paint results
A flat opacity curve can mean optical crowding, poor dispersion, or insufficient film thickness control. A sudden gloss or scrub loss usually signals that the binder no longer covers the total pigment and extender surface effectively. Change one variable at a time and preserve the original control. Otherwise, simultaneous changes to dispersant, shear, binder, and pigment loading make the cause impossible to identify.
Separate dispersion from optical crowding
If fineness improves but hiding does not, check film thickness, pigment volume concentration, extender spacing, and refractive-index contrast. If tint strength or gloss changes after a rub-up or after letdown, investigate flocculation. This distinction keeps a titanium dioxide loading in paint project from becoming an endless increase in milling time.
Calculate delivered value
Compare cost at the dosage that actually passes, including dispersion time, yield loss, solvent or water adjustment, and rework risk. The cheapest price per tonne is not necessarily the lowest cost per passing litre of paint. A stable titanium dioxide loading in paint grade can create value through higher throughput and fewer corrections even when its invoice price is higher.
titanium dioxide loading in paint supplier qualification checklist
Ask for hiding-efficiency curves in comparable binders, oil absorption or demand indicators, dispersant guidance, and lot consistency data rather than selecting on TiO2 assay alone. Also confirm specification limits, test methods, change-notification practice, certificate availability, traceability, packaging, lead time, and technical support.
- Match the grade to binder, process, sheen, and exposure.
- Request test methods, not only typical values.
- Trial more than one production lot before full approval.
- Keep an approved control and retained samples.
- Set incoming checks around properties that predict plant performance.
Longtai supplies rutile titanium dioxide for coatings and supports application-based grade screening. Review the titanium dioxide product range, then use our guides to test TiO2 dispersibility and understand titanium dioxide quality inspection.
Frequently asked questions
Can a TDS select the best grade?
No. A TDS is useful for screening, but titanium dioxide loading in paint must be verified in the target formulation because binder, additives, shear, pigment volume concentration, and film build affect the result.
Should candidates use the same dispersant dose?
Use one fixed-dose comparison to expose sensitivity, then optimize promising candidates separately. Different pigment surfaces can have different stable dosage windows, and an unfair dose can reject a suitable grade.
How many lots should be approved?
Evaluate multiple representative lots when supply risk matters. One laboratory sample demonstrates potential; repeated lots show whether titanium dioxide loading in paint remains inside the process and performance window.
Need a grade recommendation? Contact Longtai with your binder, formulation type, application method, target properties, and current control grade. We can recommend a starting sample and a practical comparison plan.
Method references: ISO 13320:2020, Particle size analysis 鈥?Laser diffraction methods; ASTM paint and coating standards, including D1210.
